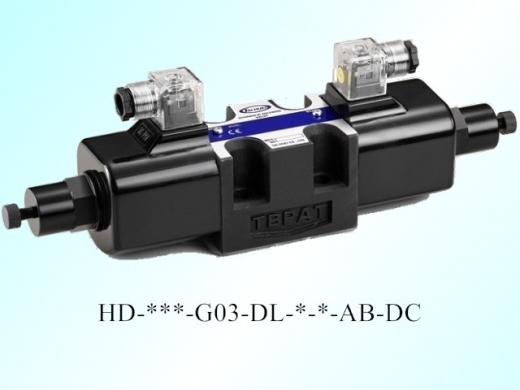

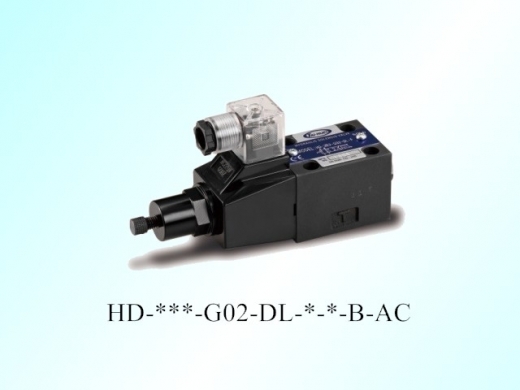

Solenoid Direction Control Valve With Manual Switch Type And Solenoid Directional Control Valve With Adjustment Type The series of manually adjust the solenoid valve
Description of Model
HD-G02 HD-G03
| HD | *** | G02/G03 | LW/DL | * | * | ||||
|---|---|---|---|---|---|---|---|---|---|
| Directional control valve |
Spool Type |
Valve size |
Wiring Connection type |
Design No. | Adjustment Type | ||||
| High flow wet pin Solenoid Directional control valve (plug-in board type) |
Refer to P19,P20 List Of SpoolFunction 技術支援 |
G02 1/4"(D03)(NG06) G03 3/8"(D05)(NG10) |
LW: Box type |
DL: Din type |
High efficiency and Low current Solenoid Directional control valve |
High Flow oil Dipping Solenoid Directional control valve |
A:A Port Adjustment type |
B:B Port Adjustment type |
AB:A&BPort Adjustment type |
Feature
- Adjustment nuts are aluminum alloy and anodized to make become dustproof.
- Adjustment screw can be quickly adjusted to the positioning.
- ※G02,G03 AB Port Adjustment type , are not recommended to use to regulate the flow.
Description of Model

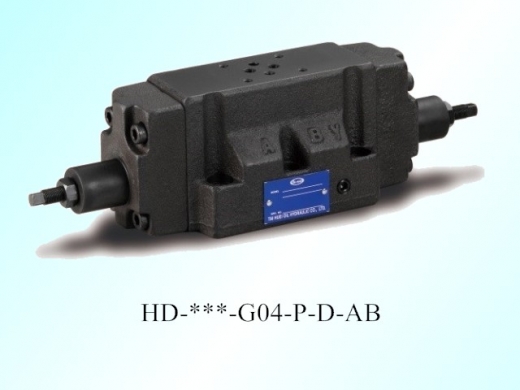

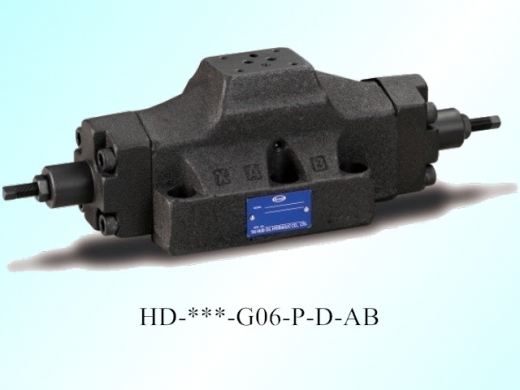

HD-G04 HD-G06
| HD | *** | G04/G06 | P | D | * | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Directional control valve |
Spool Type |
Valve size |
Piloting Type |
Draining Type | Adjustment Type | |||||
| Solenoid Controlled Pilot Operated Directional valve |
Refer to P33 The List Of Spool Function |
G04 1/2" (DN16 nominal diameter) |
G06 3/4" (DN25 nominal diameter) |
Refer to G04,G06 | Refer to G04,G06 | A:A Port Adjustment Type |
B:B Port Adjustment Type |
AB:A&BPort Adjustment Type |
||
Feature
- Adjustment screw by special exquisite design , can be fine adjustment.
- Adjustment screw made by special steel and treated with induction hardening.
- The end of adjustment is quadrangle design, can be easy adjustment.
- Can be use to regulate the flow.

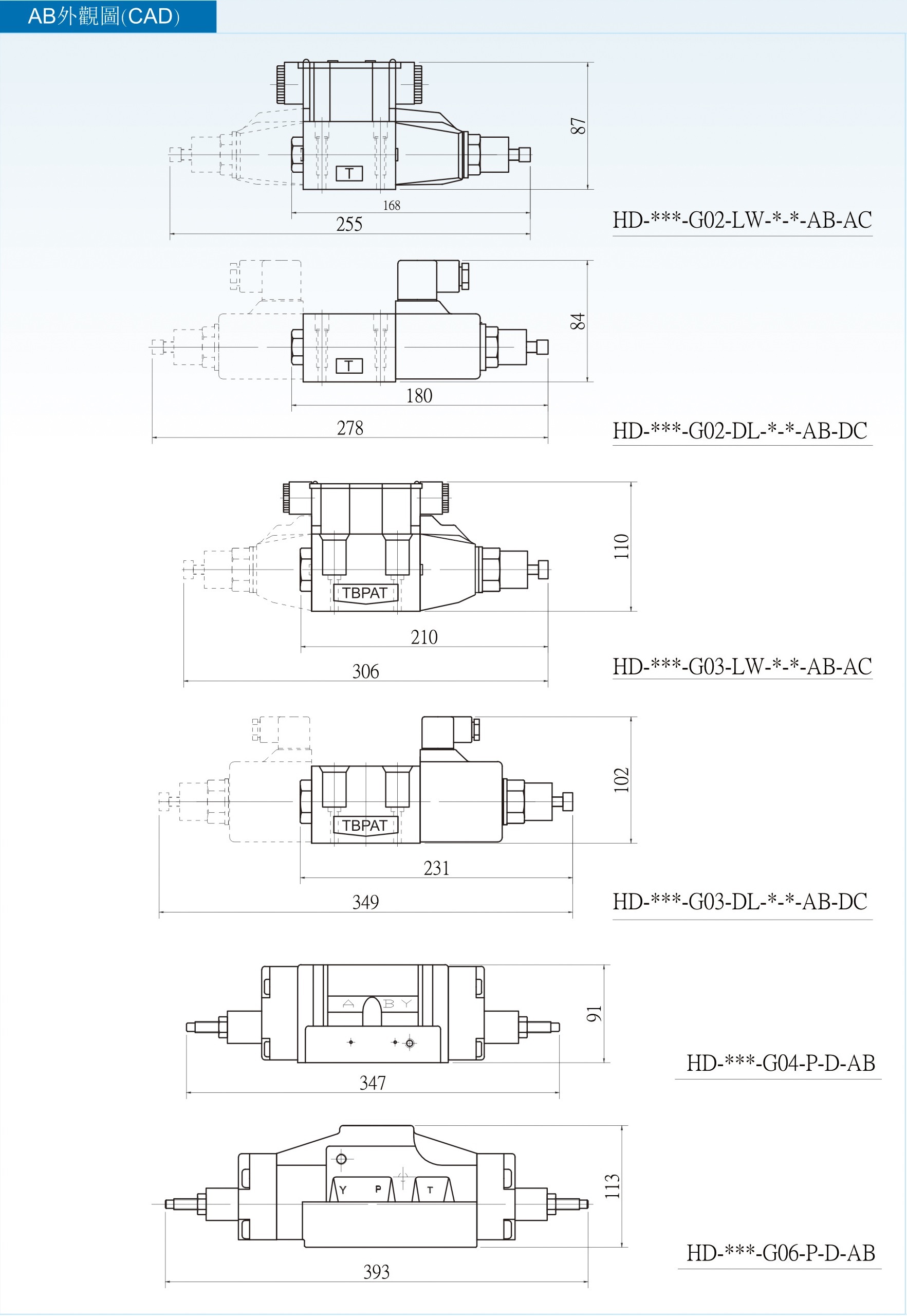

View & Component
